Description:

Product Introduction

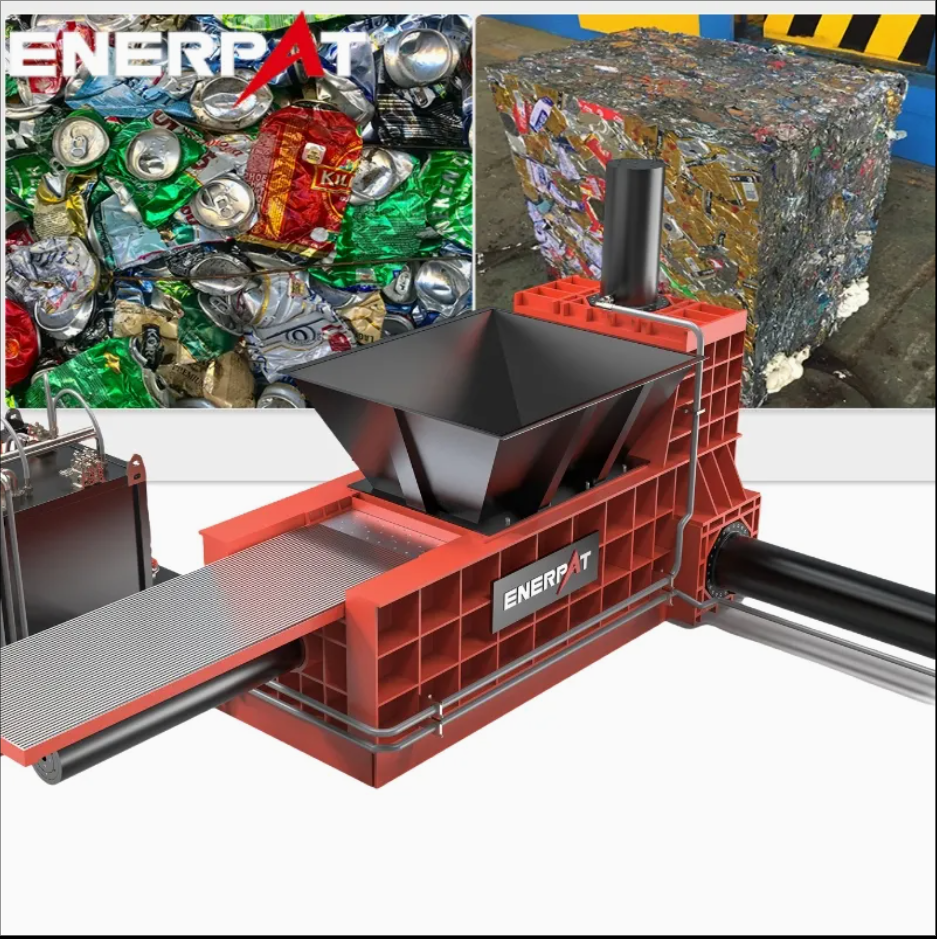

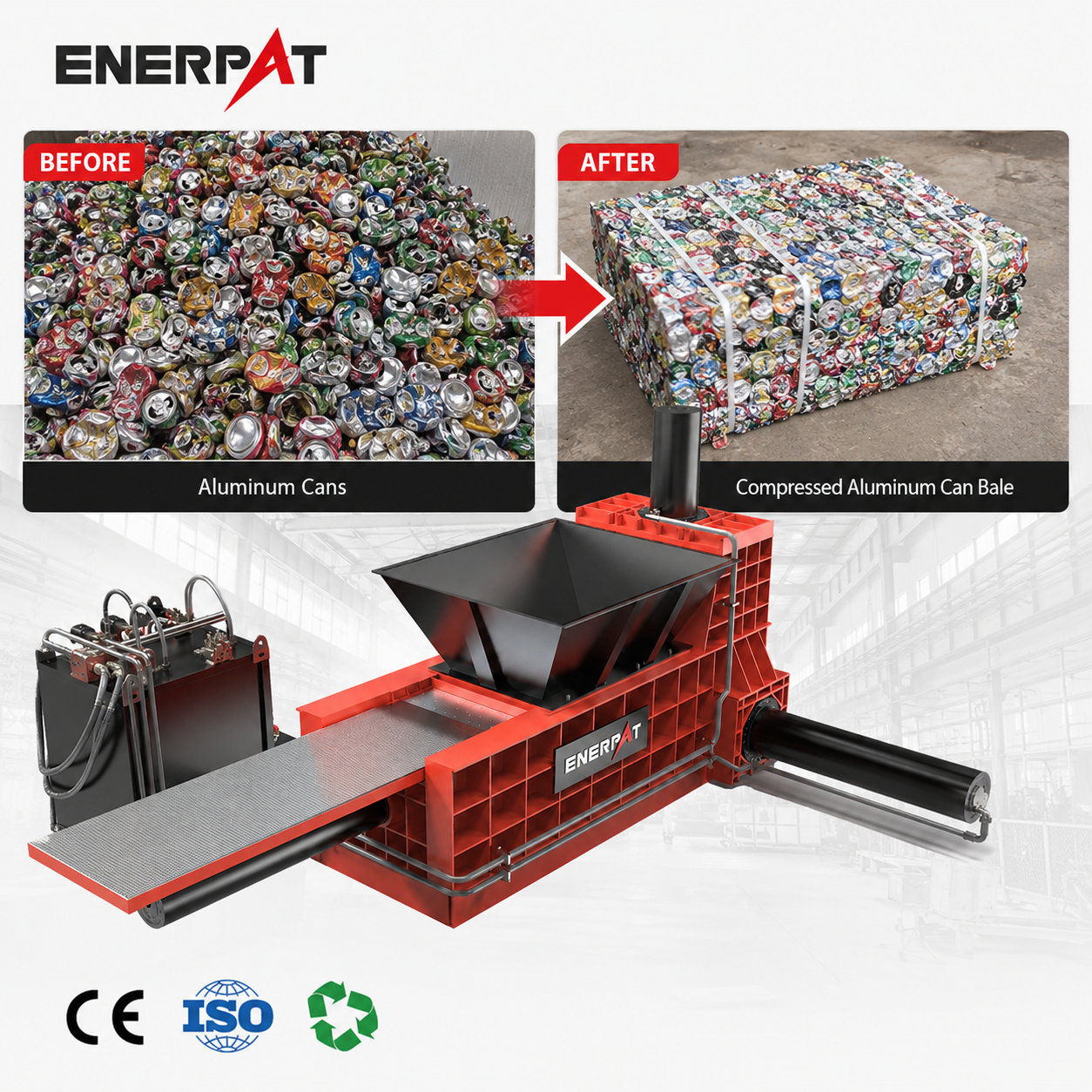

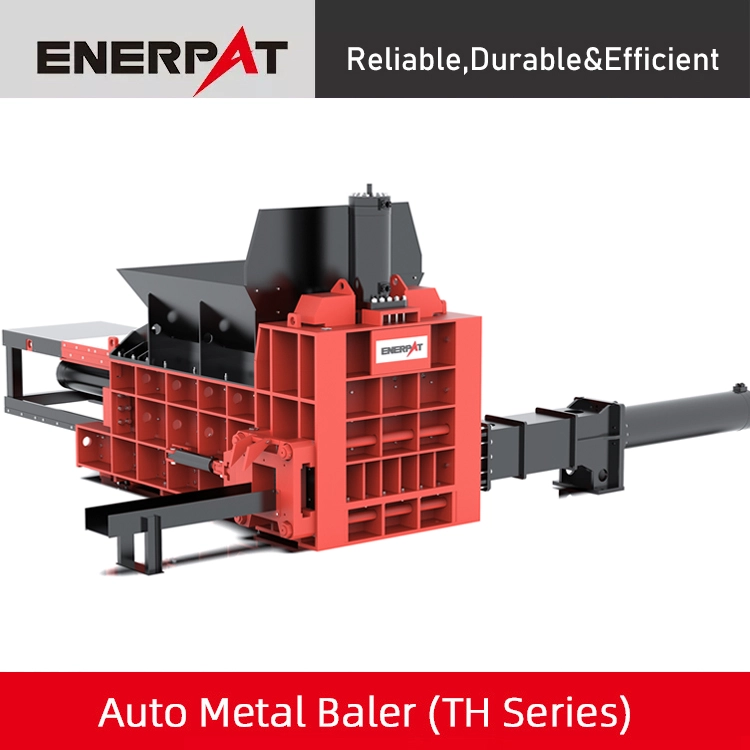

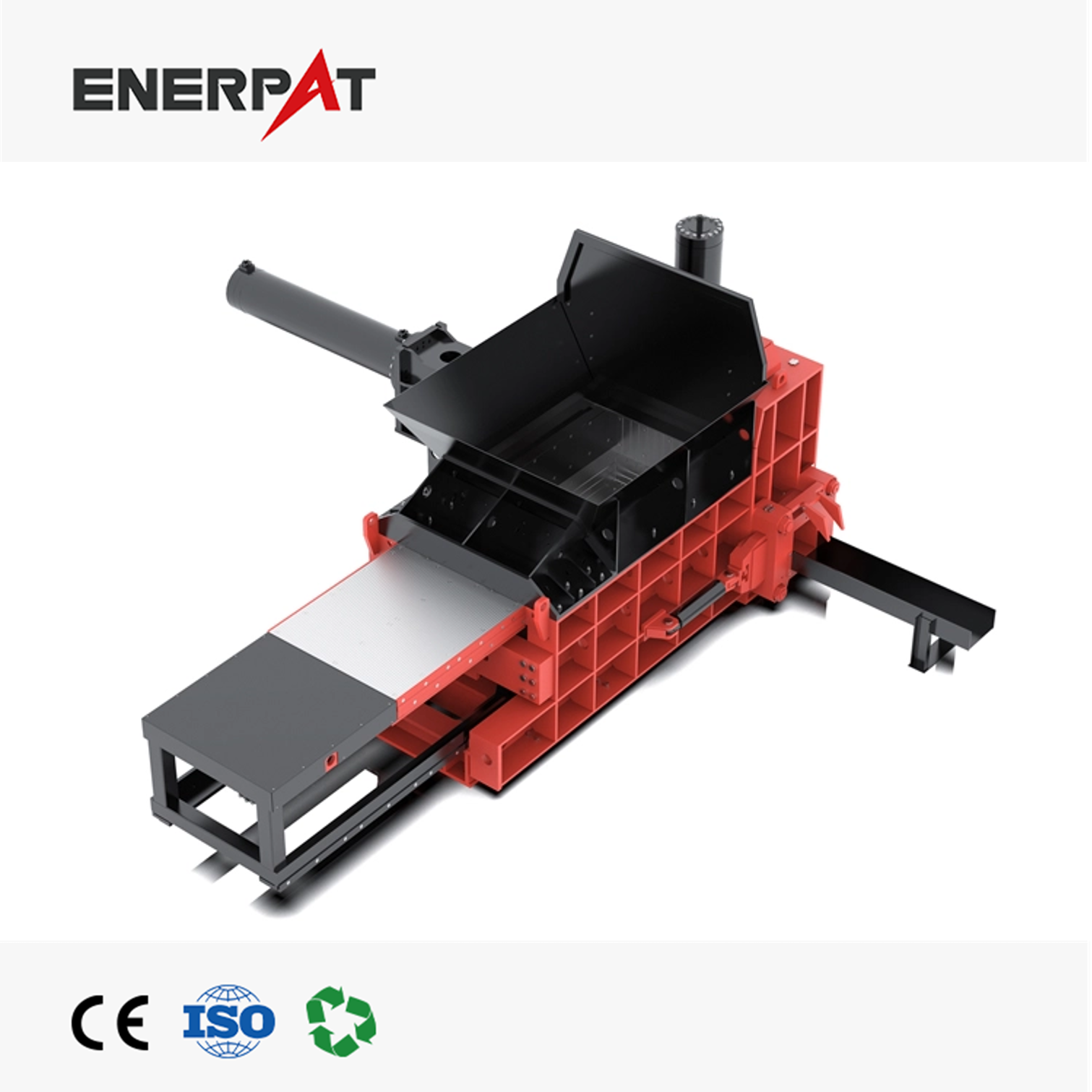

ENERPAT TH Series Automatic Triple Compression Scrap Metal Baler is designed to efficiently compress ferrous and non-ferrous metal scraps including aluminum, copper, stainless steel, sheet metal, wires and cans into high-density bales.

Featuring a heavy-duty three-way compression structure and automatic cutting blade, the machine delivers stable performance with processing capacity up to 20 tons per hour for aluminum scrap.

The fully automatic system supports touch screen control, remote fault diagnosis, and flexible indoor or outdoor installation. It helps recycling plants reduce transport cost, increase scrap density, improve storage efficiency, and achieve higher recycling value.

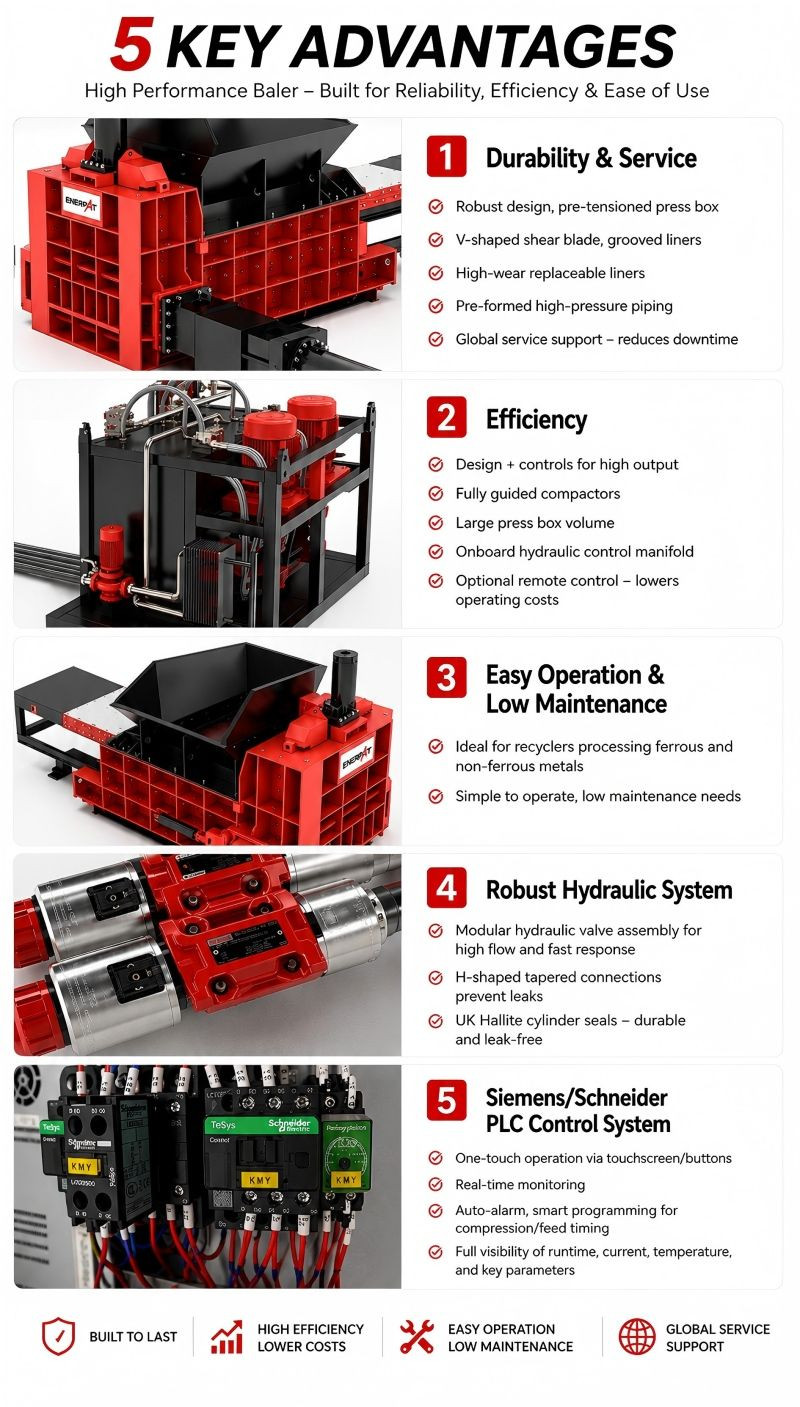

Product Superiority

Technical Specifications

MODEL		AMB-TH-2080	AMB-TH-2210	AMB-TH-2212	AMB-TH-2812	AMB-TH-2815	AMB-TH-6020	AMB-TH-60201
BalesHxW(L)	mm	250 x 250 （var.)	300 x 300 （var.)	300 x 300 （var.)	400 x 400 （var.)	400 x 400 （var.)	600 x 600 （var.)	600 x 600 （var.)
Motor Power	kW	1 x 55	1 x 55 1 x 90 2 x 55	1 x 55 1 x 90 2 x 55	1 x 90 2 x 55	1 x 90 2 x 90 3 x 90	3 x 90	3 x 90
Cycle time (no-load)	S	25	34 - 23	38 - 26	40 - 36	46 - 28	60	69
Bales/h (90% availability)	1/h	137	101 - 149	90 - 132	86 - 95	74 - 122	57	50
Max. production capacity, Fe (bale weight)	t/h	10 （69 kg）	13 - 19 (124 kg)	12 - 17 （124 kg)	24 - 26 (264 kg)	21 - 34 (264 kg)	47 (791 kg)	59 (1,130 kg)
Max. production capacity, Cu + Ms (bale weight)	t/h	11 (78kg)	15 - 22 (141 kg)	13 - 20 (141 kg)	27 - 30 (301 kg)	23 - 39 (301 kg)	54 (903 kg)	67 (1,290 kg)
Max. production capacity, Al (bale weight)	t/h	4 (28kg)	5 - 7 (44 kg)	4 - 6 (44 kg)	8 - 9 (94 kg)	7 - 12 (94 kg)	16 (272 kg)	20 (389 kg)
Cylinder forces, 1st compactor	t	72	112	112	161	189	343	343
Cylinder forces, 2nd compactor	t	91	136	161	220	252	494	494
Cylinder forces, final compactor	t	160	200	200	350	350	800	1,000
Spec. pressure final compactor	N/ cm²	2,128	2,063	2,063	2,104	2,104	2,144	2,749
Press box, (W x L x H)	mm	795 x 1,925 x 600	1,020 x 2,235 x 800	1,245 x 2,235 x 800	1,245 x 2,840 x 1,100	1,500 x 2,840 x 1,100	2,000 x 6,000 x 1,600	2,010 x 6,000 x 1,600
Feed opening, (W x L)	mm	725 x 1,450	945 x 1,655	1,170 x 1,655	1,170 x 2,130	1,425 x 2,130	2,910 x 4,930	1,910 x 4,930
Machine dimensions (W x Lx H)	mm	4,550 x 5,800 x 3,000	5,290 x 6,605 x 3,735	5,990 x 6,605 x 3,775	6,360 x 8,035 x 4,600	7,060 x 8,035 x 4,615	10,155 x 15,650 x 6,110	10,495 x 15,650 x 6,110

Materials & Applications

Material Category	Examples
Aluminum	aluminum foil thermal break aluminum aluminum alloy aluminum profiles aluminum extrusion scrap aluminum stamping scrap aluminum offcuts aluminum sheet and strip aluminum wire fine aluminum wire aluminumtube,aluminum caps aluminum cans car body shell
copper	copper foil copper offcuts copper stamping scrap copper strip copper wire/cable copper coil bright & shiny copper electric wire and cable copper tube copper busbar
steel	light steel scrap steel offcuts steel stamping scrap tire wire thin stainless steel scrap electrical steel

Company Strength

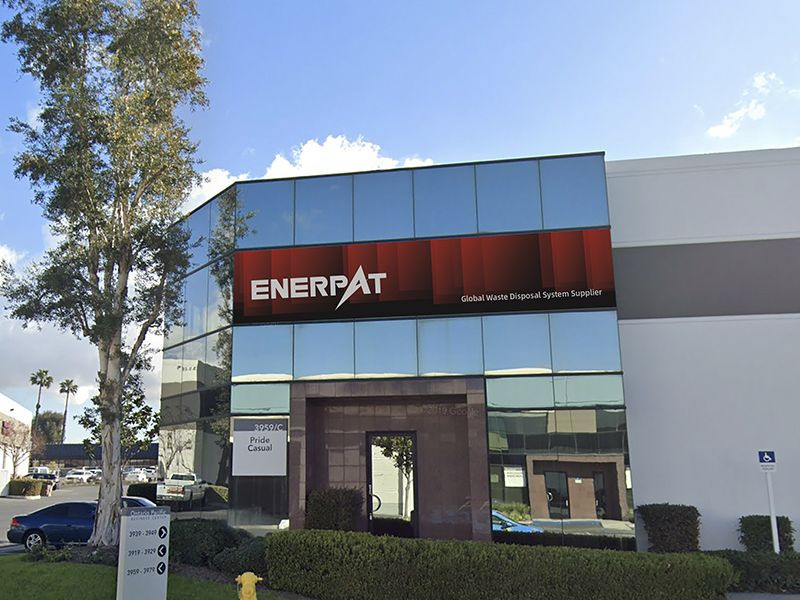

About ENERPAT

Founded in Manchester, UK in 1936, ENERPAT is a global leader in solid waste recycling equipment and solutions with over 80 years of British engineering heritage. Combining UK core technology with a full-chain R&D-production-sales-service model, ENERPAT delivers reliable, high-performance equipment to customers in 165+ countries.

Why Choose ENERPAT

85+ Years of Expertise — Continuous innovation since 1936, from the first hydraulic baler to todays AI-powered sorting and lithium battery recycling systems

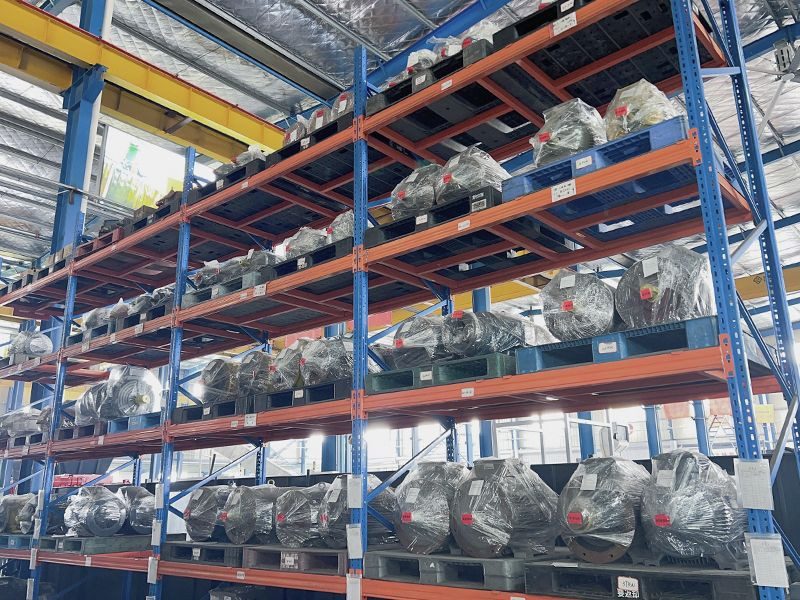

Global Manufacturing Footprint — Production bases in UK, Germany, China (33,300 m² Nantong facility), and USA (Ohio & California); 100+ authorized distributors worldwide
