Product Introduction

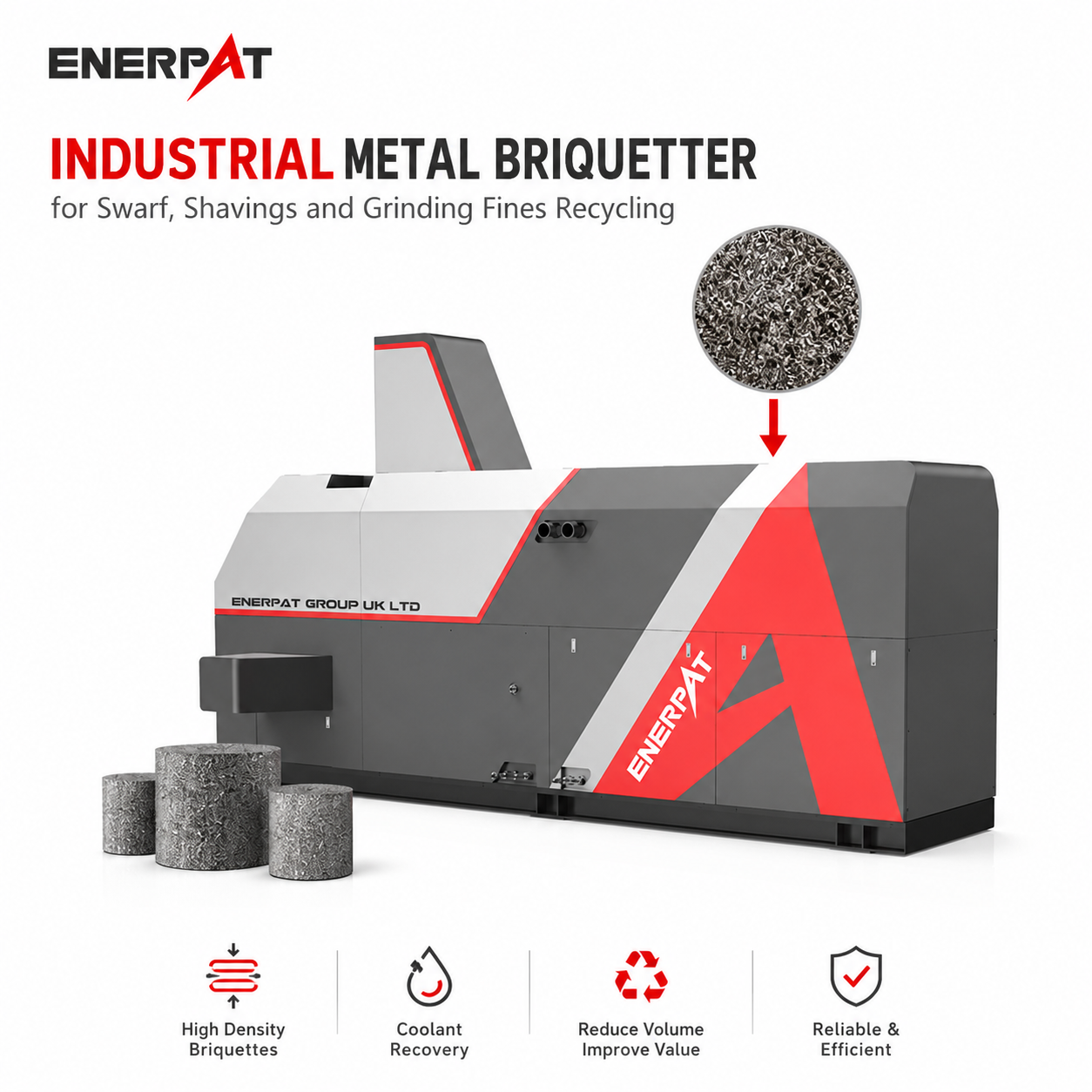

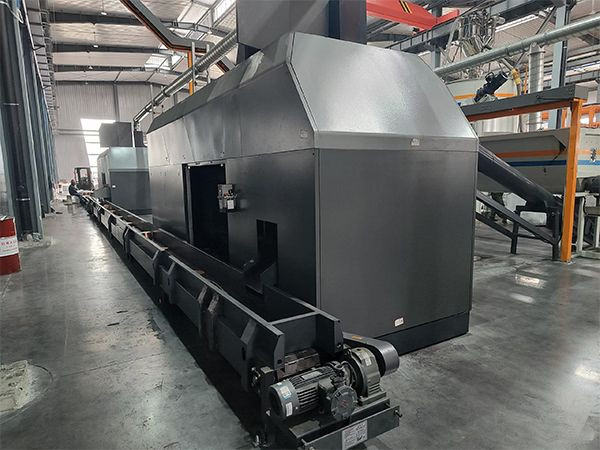

Enerpat BM Series Large Briquetting Press, also known as aluminum briquetting machine, aluminum briquetter, aluminum can briquetter and aluminum puck machine, is built for high-capacity production.
Featuring 315–5000 tons compression force and 1–120 tons hourly output, it one-step compresses iron, aluminum, stainless steel, copper, titanium scraps into solid briquettes. It removes cutting fluid at a 95% rate to keep briquettes dry and leak-proof, cutting oil pollution, tidying workshops, saving space and meeting environmental standards.

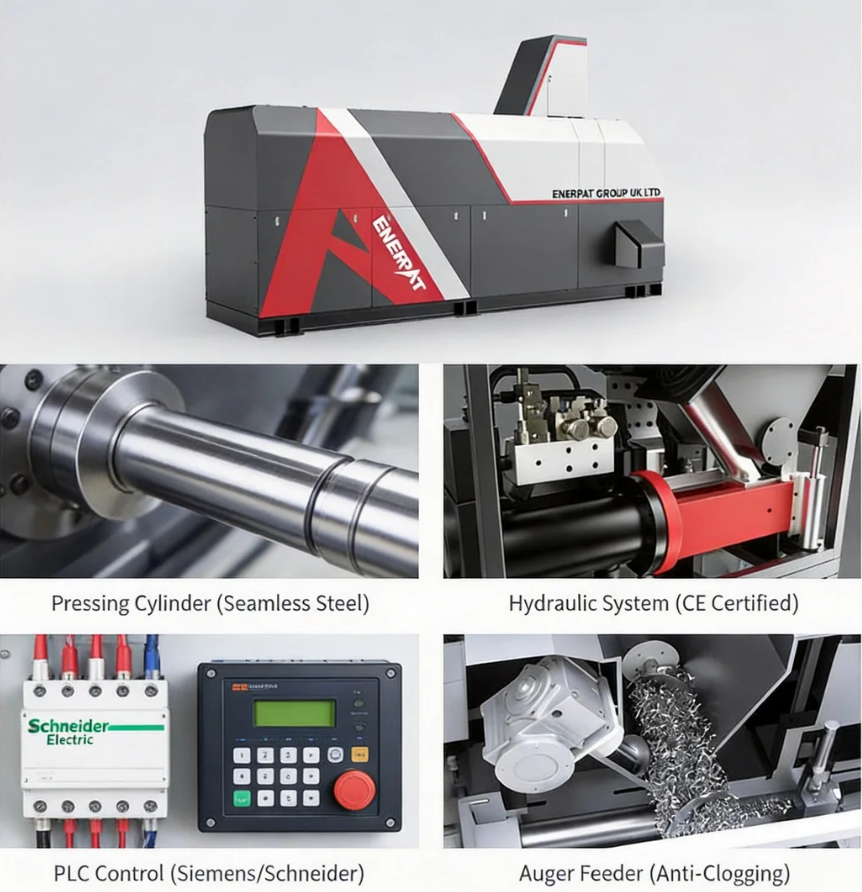

Product Superiority
Technical Specifications
|
Processed Materials
|
Model
|
BM-6320
|
BM-8024
|
BM-10028
|
BM-13031
|
BM-16035
|
|
Steel Chips
|
Block Diameter
|
¢200
|
¢240
|
¢280
|
¢310
|
¢350
|
|
Block Weight (Kg)
|
20
|
40
|
65
|
80
|
120
|
|
|
Aluminum Chips
|
Block Diameter
|
¢220
|
¢250
|
¢280
|
¢320
|
¢360
|
|
Block Weight (Kg)
|
10
|
22
|
35
|
50
|
70
|
|
|
Copper Chips
|
Block Diameter
|
¢180
|
¢240
|
¢280
|
¢310
|
¢350
|
|
Block Weight (Kg)
|
24
|
45
|
75
|
90
|
130
|
|
|
Motor Oil Pump Group
|
Displacement (L/min)
|
180*2
|
250*3
|
250*4
|
250*6
|
280*6
|
|
Power (KW)
|
45*2
|
45*3
|
75*2
|
75*3
|
90*3
|
|
Processed Materials
|
Model
|
BM-20040
|
BM-25045
|
BM-30050
|
BM-40058
|
BM-50065
|
|
Steel Chips
|
Block Diameter
|
¢400
|
¢450
|
¢500
|
¢580
|
¢650
|
|
Block Weight (Kg)
|
200
|
280
|
400
|
600
|
850
|
|
|
Aluminum Chips
|
Block Diameter
|
¢420
|
¢480
|
¢520
|
¢600
|
¢680
|
|
Block Weight (Kg)
|
120
|
160
|
250
|
400
|
500
|
|
|
Copper Chips
|
Block Diameter
|
¢400
|
¢450
|
¢500
|
¢580
|
¢650
|
|
Block Weight (Kg)
|
220
|
300
|
450
|
600
|
900
|
|
|
Motor Oil Pump Group
|
Displacement (L/min)
|
280*8
|
280*10
|
280*16
|
280*20
|
280*26
|
|
Power (KW)
|
90*4
|
90*5
|
90*8
|
90*10
|
90*13
|
|
Model
|
Compression Force (t)
|
Pellet Diameter (mm)
|
Motor Power (kW)
|
System Pressure (MPa)
|
Equipment Dimensions (mm)
|
Equipment Weight (kg)
|
Operation Mode
|
|
BM-3114
|
315
|
140
|
22
|
25
|
6050×3590 ×3520
|
10000
|
Fully Automatic
|
|
BM-4015
|
400
|
150
|
30
|
25
|
6140×3710 ×3620
|
12000
|
Fully Automatic
|

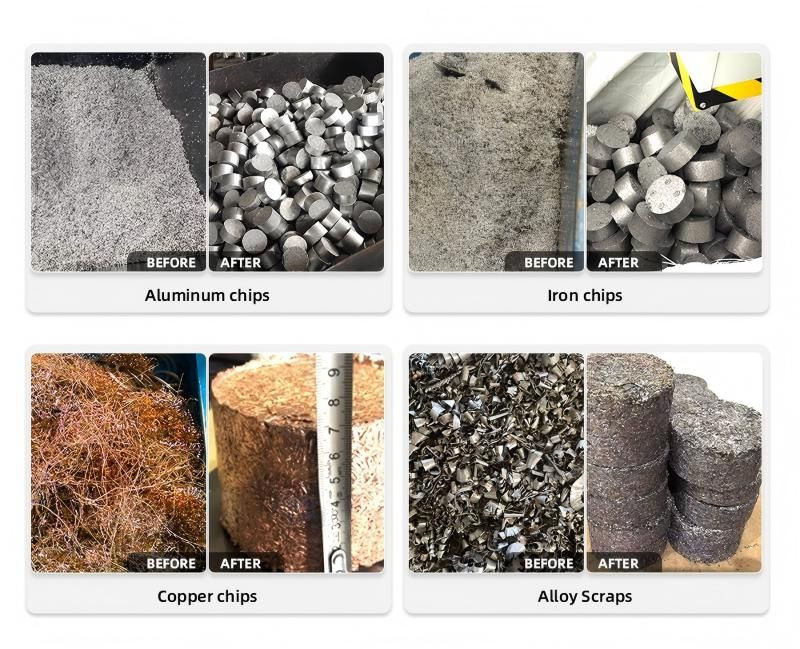

Materials & Applications
Metal chips/turnings/swarf/Shavings / Filings/ Grinding fines
l Steel chips / Steel turnings
l Aluminum chips / Aluminum turnings
l Copper chips / Copper turnings / Copper swarf
l Brass chips / Brass turnings
l Stainless steel chips / Stainless turnings
l Alloy chips / Special alloy turnings
l Nickel alloy chips
Company Strength
About ENERPAT
Founded in Manchester, UK in 1936, ENERPAT is a global leader in solid waste recycling equipment and solutions with over 80 years of British engineering heritage. Combining UK core technology with a full-chain R&D-production-sales-service model, ENERPAT delivers reliable, high-performance equipment to customers in 165+ countries.
Why Choose ENERPAT
85+ Years of Expertise — Continuous innovation since 1936, from the first hydraulic baler to todays AI-powered sorting and lithium battery recycling systems
Global Manufacturing Footprint — Production bases in UK, Germany, China (33,300 m² Nantong facility), and USA (Ohio & California); 100+ authorized distributors worldwide
Proven at Scale — Trusted by 278 Fortune Global 500 enterprises; 25.8 billion in annual sales; 15,000+ satisfied customers
Full Solution Provider — From single machines (shredders, balers, briquetting presses, AI sorters) to complete turnkey recycling lines for metal, automotive, e-waste, lithium battery, and new energy sectors
Quality Guaranteed — ISO & CE certified; 1-year full machine warranty, 5-year motor warranty; UK engineering standards throughout
24/7 Global Support — Localized service teams and rapid technical response across continents
Industries We Serve
Metal processing & manufacturing · End-of-life vehicle recycling · Wind & solar new energy · E-waste & lithium battery recovery · New material production.
Exhibition situation
Certifications & Quality Assurance
l ISO 9001 / ISO 14001 certified
l SGS certified
l CE certified (EU market compliance)
l 1-year full machine warranty + 5-year motor warranty
l British engineering standards & quality control
Delivery & Payment
l Pre-sale: Free consultation and material testing to match the right solution
l Delivery & Installation: Equipment shipped and installed by experienced ENERPAT engineers
l Commissioning: Full on-site commissioning and trial run before handover
l Training: Hands-on operator training included with every machine
l After-sales: 24/7 technical support and spare parts service worldwide
l Payment Terms: T/T (Telegraphic Transfer)
